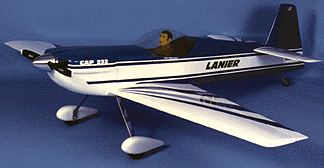

Cap 232
Designed by Peter Woo
IMAA & IMAC Legal Not an ARF
Cat. No. 97227
Experience the unlimited
aerobatic performance of the newest foam core winged airplane from Lanier. This
new generation BPPF* kit features AutoCAD generated plans, laser cut and CNC
router cut interlocking construction. The quality in the kit will give you
confidence as you take this well designed aircraft to the skies.
| Overall Fuselage Length: |
76 " |
| Wing Span: |
81 " |
| Fueselage Length: |
35-1/4 " |
| Wing Area: |
1275 sq.in. |
| Rec. Engine Size: |
1.50 - 3.2 2-Stroke |
| |
1.60 - 3.0 4-Stroke |
| Radio Channels: |
4 |
| Flying Weight: |
12 - 15 lbs. |
This Lanier RC Balsa, Plywood, Plastic, Foam Kit Features:
| Built Up Sheeted
Turtledeck |
Full Symmetrical Airfoil |
Balsa sheeted foam tail
Assembly |
| Foam Wing with Spruce
Spars,Full Balsa Sheeting and Cap Stripping Required |
Hefty Pre-formed
Aluminum Landing Gear |
ABS Cowl and Wheel Pants |
| Built-up Fuselage with
CNC Router Cut Plywood Sides |
Spare Parts Available |
CNC Router Cut Lite
Plywood Parts and Bulkheads |
| Vacuum Formed Canopy |
No Hardware Included |
Meets IMAC Requirements |
| Fast Assembly with Minimum
Parts |
|
Easy-to-Follow Plans &
Instructions |
|
