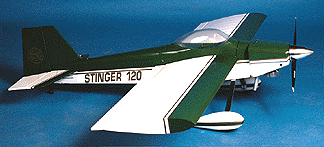

Stinger 1.20
Designed by Jerry Smith
IMAA Legal
Not an ARF
Cat. No. 92215
Small-plane agility --
giant-scale size! Stable at slow speeds, the Stinger 1.20 shows unexpected
small-plane agility during aerobatics. The balsa-sparred, foam wings are
symmetrical w/full-length ailerons. A built-up, "no-joint" plywood
fuse speeds assembly, and features an ABS turtledeck, plus ABS/vac-formed parts
for true-scale looks and building ease. The 1.20 builds with a 72" or IMAA-legal
80" wing and requires a .91 - 2.2 cu in engine. Requires a 4-channel radio
w/5 servos.
| Overall Fuselage Length: |
64 " |
| Wing Span: |
80-1/4 " IMAA Legal |
| |
72-1/4 " Non-IMAA Legal |
| Fueselage Length: |
48-1/4 " |
| Wing Area: |
1344 sq.in. IMAA Legal |
| |
1210 sq. in. Non-IMAA Legal |
| Rec. Engine Size: |
.91 - 2.2 2-Stroke |
| |
1.20 - 1.60 4-Stroke |
| Radio Channels: |
4 |
| Flying Weight: |
11 lbs. and up |
| Fiberglass
Wheelpants & Cowl Available |
This Lanier RC Balsa, Plywood, Plastic, Foam Kit Features:
| Vacuum Formed Fuselage
Turtledeck and Wing Cover |
Full Symmetrical Airfoil |
Parts for Complete
Built-up Tail Assembly |
| Foam Wing with Partial
Balsa Sheeting and Cap Stripping Required |
Hefty Pre-formed
Aluminum Landing Gear |
ABS Cowl, Wheel Pants
and Landing Gear Cuffs |
| Built-up Fuselage with
CNC Router Cut Plywood Sides |
Spare Parts Available |
CNC Router Cut Lite
Plywood Parts and Bulkheads |
| Vacuum Formed Canopy |
No Hardware Included |
Meets IMAC Requirements |
| Fast Assembly with Minimum
Parts |
|
Easy-to-Follow Plans &
Instructions |
|
