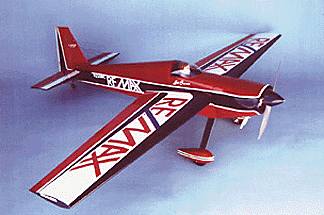

1/3 Scale Laser 200
Designed by Bob Godfrey
IMAA Legal & IMAC Legal
Not an ARF
Cat. No. 94219
The sporty aerobats for IMAA
events. This sleek, 96" span Third-Scale Laser 200 delivers contest-winning
aerobatics and looks with Lanier building ease. The fuse is built-up with ply
sides, the plug-in wings are foam, with an aluminum spar and balsa sheeting.
Vacu-formed wing cover, rear turtledeck and canopy, plus ABS cowl and wheelpants,
make the final, finished look easy to achieve. Formed aluminum gear included.
| Overall Fuselage Length: |
79 " |
| Wing Span: |
96 " |
| Fueselage Length: |
61 " |
| Wing Area: |
1596 sq.in. |
| Rec. Engine Size: |
3.2 - 4.2 2-Stroke |
| |
2.4 - 3.0 4-Stroke |
| Radio Channels: |
4 |
| Flying Weight: |
17 - 22 lbs. and up |
| Fiberglass
Wheelpants & Cowl Available |
This Lanier RC Balsa, Plywood, Plastic, Foam Kit Features:
| Vacuum Formed Fuselage
Turtledeck and Wing Cover |
Full Symmetrical Airfoil |
Parts for Complete
Built-up Tail Assembly |
| Foam Wing with Spruce
Spars, Partial Balsa Sheeting and Cap Stripping Required |
Hefty Pre-formed
Aluminum Landing Gear |
ABS Cowl, Wheel Pants
and Landing Gear Cuffs |
| Built-up Fuselage with
CNC Router Cut Plywood Sides and Laser Cut Formers |
Spare Parts Available |
CNC Router Cut Lite
Plywood Parts and Bulkheads |
| Vacuum Formed Canopy |
No Hardware Included |
Meets IMAC Requirements |
| Fast Assembly with Minimum
Parts |
|
Easy-to-Follow Plans &
Instructions |
|
